METHODS
Leak testing and visual inspection of packaging

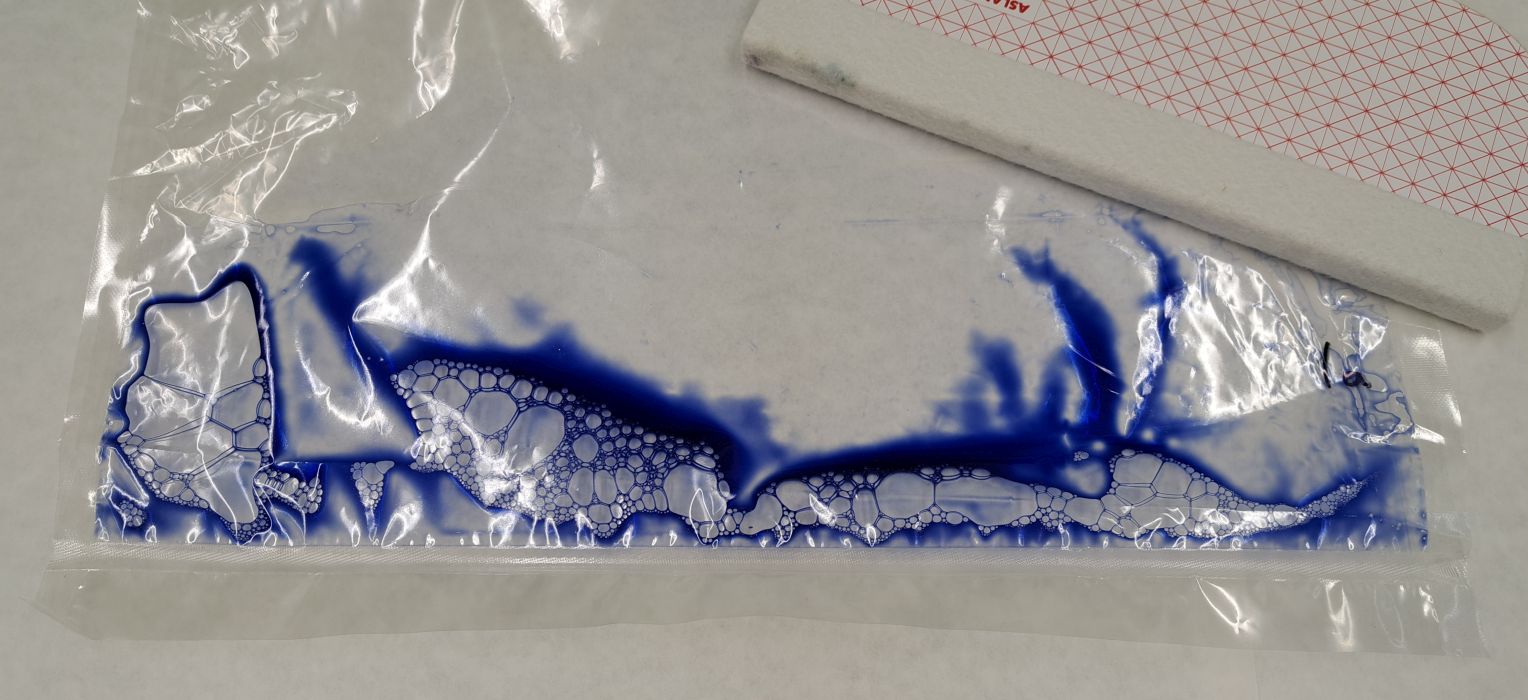

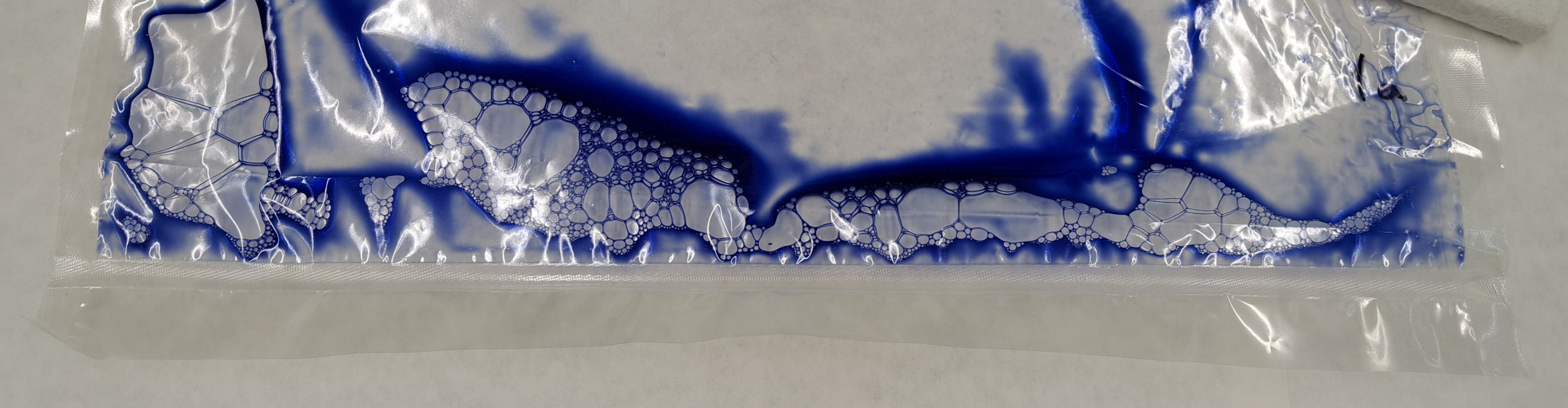

We carry out leak tests on sealed seams using dye penetration, both for porous (ASTM F1929) and non-porous (ASTM F3039) packaging. In both methods, the test liquid is injected into the packaging. The capillary effect fills channels with a diameter of over 50 μm in the seal seam and thus makes them visible. The test liquid and exposure time vary depending on the standard.
In addition, we also offer leak tests using bubble emission (ASTM D3078) and visual inspections in accordance with ASTM F1886 / F1886M.
According to which standards do we test?
Whenever possible, we carry out our testing services in accordance with or based on these international standards:
- ASTM D3078
- ASTM F1886 / F1886M
- ASTM F1929
- ASTM F3039
Which devices do we use?
- Labthink MFY-01 Leak Tester (for tests according to ASTM D3078)
For which material tests do
do we use this method?
We use the test methods according to ASTM D3078, F1886 / F1886M, F1929 and F3039 for the following tests, among others:
What you should know about this method?
Are the analyses accredited?
Yes, the test methods according to ASTM D3078, F1886 / F1886M, F1929 and F3039 are validated by us and accredited according to ISO/IEC 17025.
